Optical-Grade Diamond
Optical-grade diamond platforms for photonics, spectroscopy and advanced beamline optics. This portfolio focuses on Optical Diamond Substrates, Diamond ATR crystals, and Diamond X-ray monochromators—with customization for dimensions, orientation, and packaging.

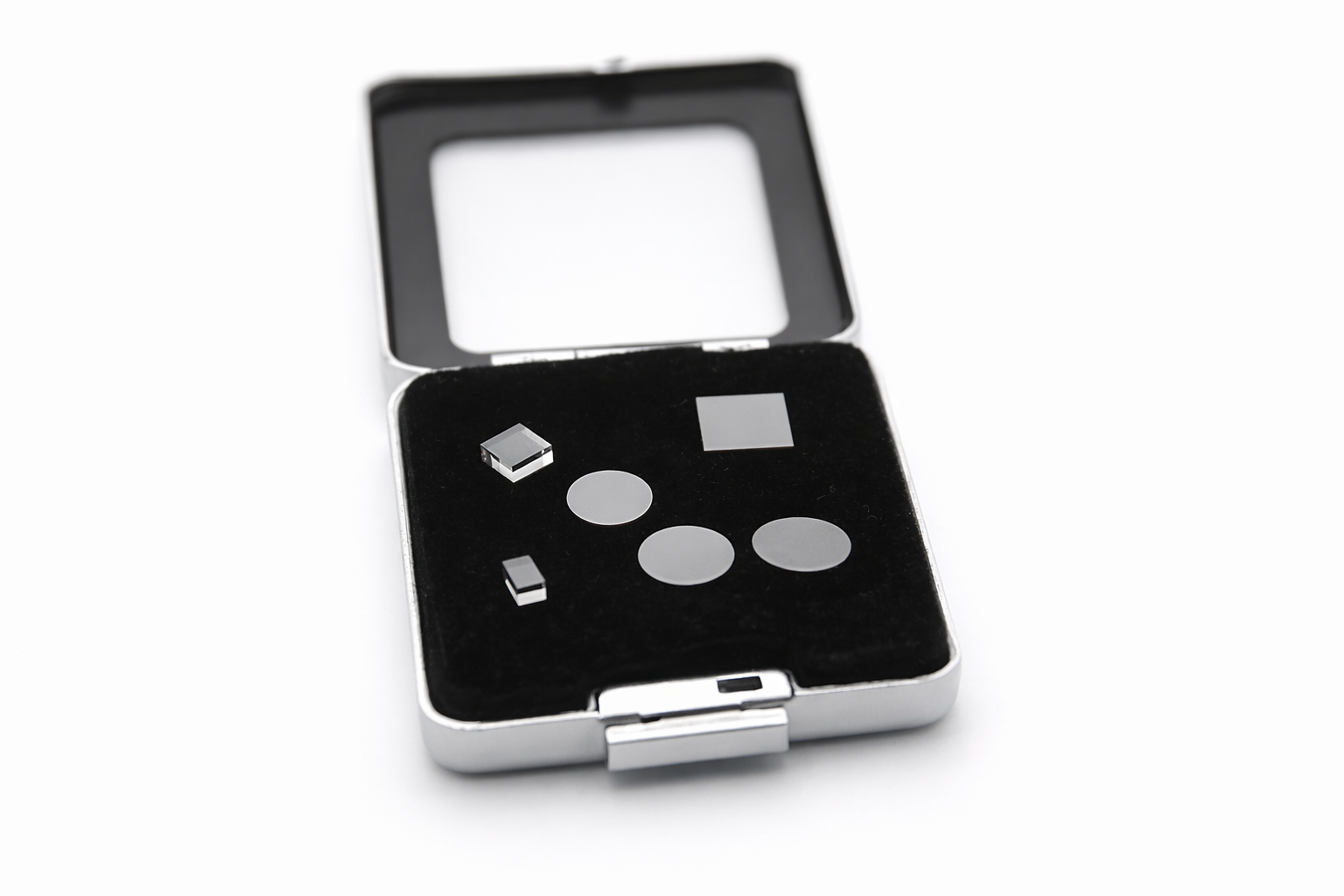

Optical Diamond Substrates
High-transparency diamond substrates for optical windows, photonics components, and harsh-environment optics. Configurable thickness, orientation, and surface finishing for integration.
Core Points
Series 01Core Parameters
| Material | Single-crystal diamond (CVD/HPHT) · Polycrystalline diamond (on request) |
|---|---|
| Typical formats | Plates / windows / custom geometries |
| Crystal orientation (face) | {100} / {110} / {111} (custom) |
| Dimensions (L × W) | Customizable (mm-scale and inch-scale) |
| Thickness | 0.1-2mm |
| Surface finish | Polished / Super-polished (application-dependent) |
| Packaging | Component-only · Mounted · Sealed (OEM) |

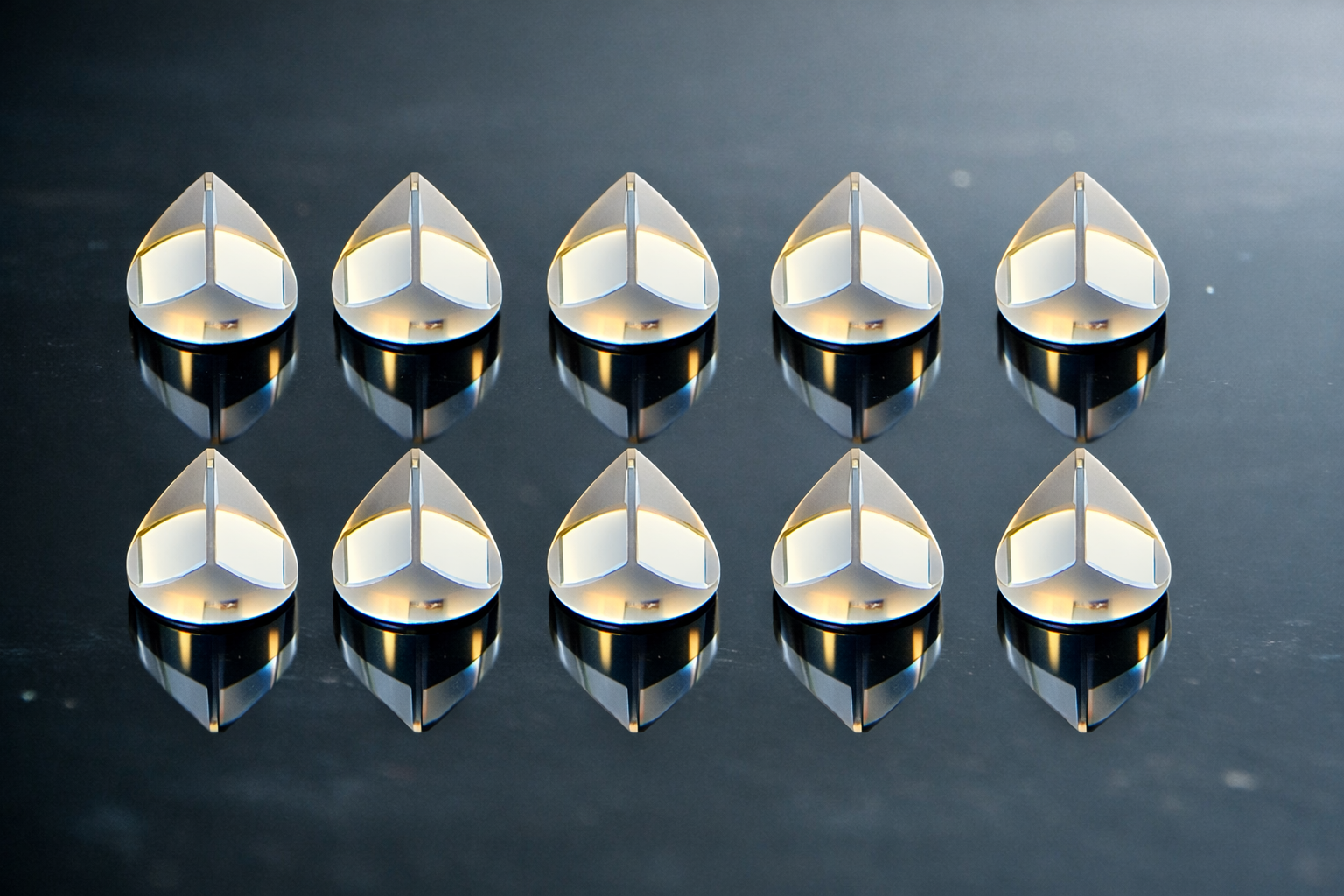

Diamond ATR Crystal (Attenuated Total Reflection)
Premium diamond ATR crystals for fast, non-destructive IR spectroscopy with outstanding hardness, chemical stability, and long-term reliability in demanding sample environments.
Core Points
Series 02Core Parameters
| Crystal type | Type IIa diamond |
|---|---|
| Dimensional tolerance | ± 0.01 mm |
| Angle tolerance | < 10 ARC |
| Surface flatness | S1/S2/S3: 1/10 λ @632.8 nm |
| Surface quality | 40–20 |
| Customization | Available upon drawing/requirement |
Diamond X-ray Monochromator
Single-crystal diamond monochromators engineered for synchrotron and XFEL beamlines. Diamond’s ultra-high thermal conductivity, low absorption, and radiation hardness support stable, high-quality monochromatic beams under extreme flux.
Core Points
Series 03Core Parameters
| Dimensions | 3×3 / 4×4 / 5×5 / 10×10 mm (custom) |
|---|---|
| Thickness | 0.05–1.5 mm |
| Crystal planes | {111} / {220} / {400} |
| Crystal type | Single-crystal electronic grade |
| Orientation accuracy | < 0.01° |
| Parallelism | μrad level |
| Purity grade | N < 5 ppb |

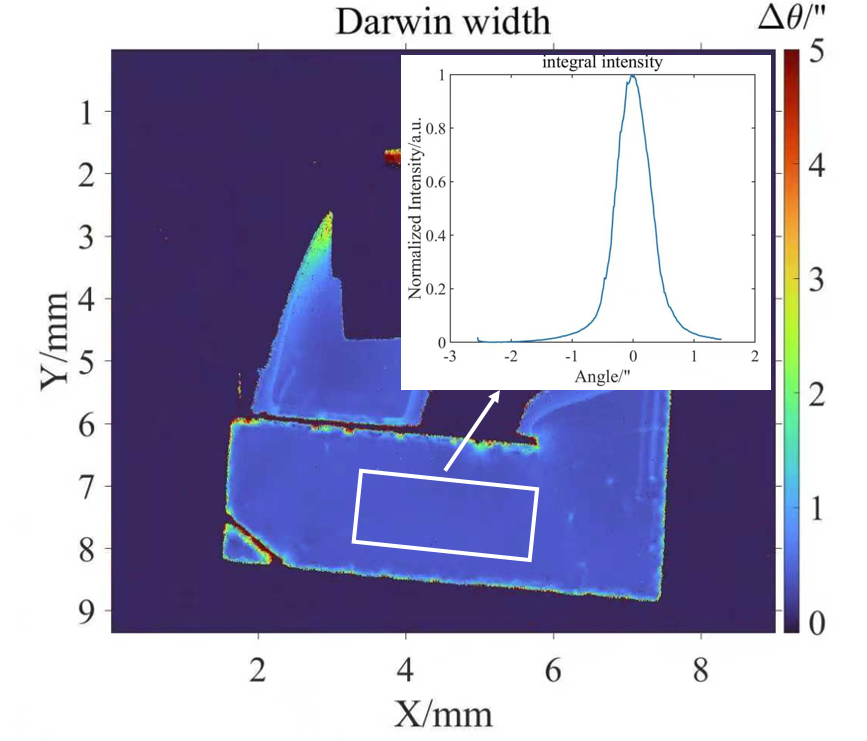

| Rocking curve（ΔΘ） | 1“ |
Discuss Your Requirement
Contact us to define the optimal optical-grade diamond solution for your system and integration route.
