(111)-oriented single-crystal diamond for experiments where NV-axis alignment, magnetic-field geometry and surface crystallography matter.

{111} orientationElectronic grade availableNV engineeredRa < 1 nm

View Specifications →Discuss Your {111} Diamond Requirement

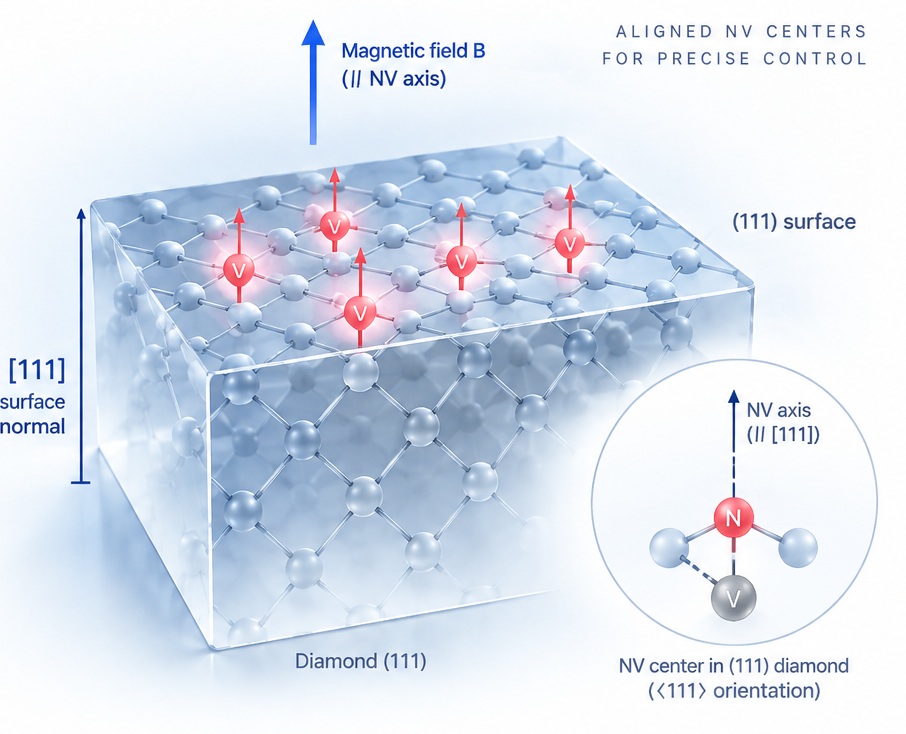

(111)-oriented diamond with an NV axis aligned to the [111] surface normal and magnetic field parallel to the NV axis

[111] surface normalThe (111) surface normal follows the [111] crystal direction.

B ∥ NV axisField alignment can be simplified for the [111]-oriented NV family.

Ra < 1 nmPrecision-polished surfaces for near-surface and device experiments.

Custom processingThickness, orientation cutting, NV engineering and termination by project.

Why {111}

Make the crystal geometry
work with the spin axis.

On a (111) surface, one NV orientation is parallel to the [111] surface normal. For experiments using that NV family, the magnetic field can be applied along the surface normal and directly along the NV axis.

Alignment geometry

Surface normal, NV axis and magnetic field on one line.

B ∥ [111]

NV axis

(111) surface

01 · FIELD CONTROL

Simpler magnetic-field alignment

For the [111]-aligned NV orientation, B can be applied normal to the surface rather than at an oblique angle.

02 · SURFACE SENSING

Useful near-surface geometry

A surface-normal NV axis is convenient for shallow-NV sensing, scanning geometries and surface-sensitive measurements.

03 · OPTICAL GEOMETRY

Clear experimental axis

Surface, optical axis and spin quantization geometry can be designed around the same crystallographic direction.

04 · ORIENTATION ENGINEERING

Electronic-grade or NV engineered

Use a high-purity {111} host, or combine {111} orientation with custom NV depth, density and isotope engineering.

Product Configurations

Choose the {111} platform
around the experiment.

{111} diamond is available as electronic-grade host material, an NV-active layer on a {111} host, or uniform NV-ensemble material. Thickness, polishing and custom geometry remain processing options across all three platforms.

01 · ELECTRONIC GRADE

{111} Electronic Grade

High-purity single-crystal diamond with N < 5 ppb available for low-background measurements, single-NV fabrication and controlled implantation.

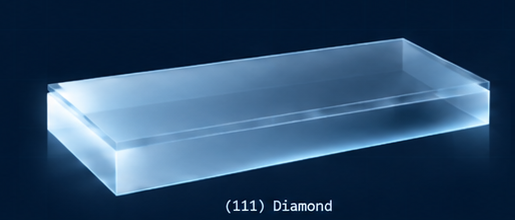

Electronic-grade {111} single-crystal diamond

N < 5 ppbRa < 1 nm{111} orientation

02 · SINGLE / SHALLOW NV

{111} Single & NV Layer

An NV-active layer is engineered directly beneath the {111} surface. Typical active-layer thickness is 1–10 μm, with NV density and layer design customizable around the experiment.

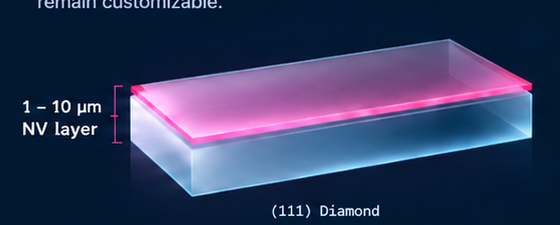

{111} diamond with a 1 to 10 micrometer NV-active surface layer

1–10 μm NV layerNear-surface NV layerCustom density

03 · NV ENSEMBLE

{111} NV Ensemble

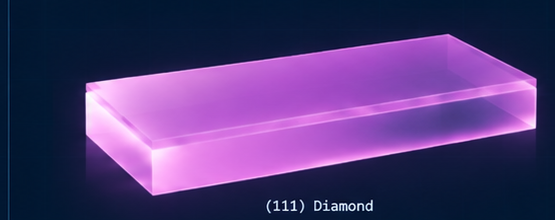

Uniform NV-ensemble material across the {111} crystal volume for magnetometry, wide-field imaging, maser and device-oriented sensing. Bulk concentration is customized by project.

Uniform bulk ensembleCustom NV concentrationBulk or layer

Typical Specifications

Define the orientation,
then define the surface.

Final specifications depend on growth route, thickness, cutting geometry and downstream NV or device requirements.

{111}Customizable

Crystal orientation

{111}

Material options

Electronic grade / single & shallow NV / NV ensemble

Nitrogen concentration

N < 5 ppb available for electronic-grade material

Typical lateral sizes

2 / 3 / 4 / 5 mm; custom processing available

Typical thickness

0.05–0.5 mm depending on configuration; custom

Surface roughness

Ra < 1 nm*

Surface finish

Precision polished; single- or double-side options by project

NV engineering

1–10 μm NV-active layer / uniform NV ensemble / patterned options by project

Surface termination

Hydrogen / Oxygen available by project

* Surface roughness and dimensional tolerances are confirmed for the final orientation, thickness and processing route.

Applications

Where {111} orientation
changes the experiment.

The main value of {111} is geometric: the crystal surface can be chosen to simplify the relationship between the sample, the NV axis and the external field.

NV Magnetometry

Surface-normal field geometry for selected NV orientations in precision magnetic sensing.

NV Layer Sensing

{111}-aligned NV layers can be engineered for surface-sensitive sensing, wide-field measurements and custom device geometries.

NV Arrays & Devices

Combine {111} substrates with patterned implantation, arrays and custom quantum structures.

Quantum Photonics

Orientation-controlled single crystal for optical structures, emitters and integrated device research.

Custom Processing

From crystal orientation
to experiment-ready geometry.

Nova can combine orientation cutting with thickness control, polishing, NV engineering and surface chemistry according to the final setup.

01Select materialElectronic grade or NV-engineered starting material.

02Define {111}Orientation cutting and geometry according to the required surface normal.

03Thin & polishThickness reduction and Ra < 1 nm surface preparation.

04Engineer NVDepth, density, isotope or pattern if required.

05Finish & verifyH/O termination and requested optical or spin characterization.
